Lucas Distributors

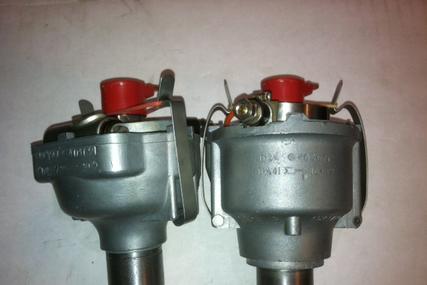

Early and later  ​                 ​DMBZ6

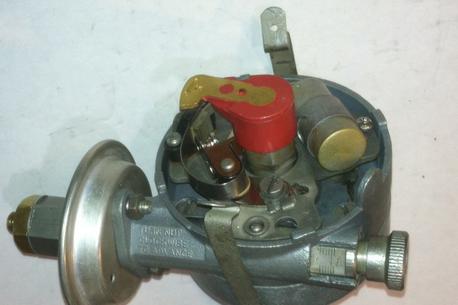

DM2P4 TR3 w/ O.E. 421953

       vacuum advance

Content copyright © 2014. British Vacuum Unit. All rights reserved.

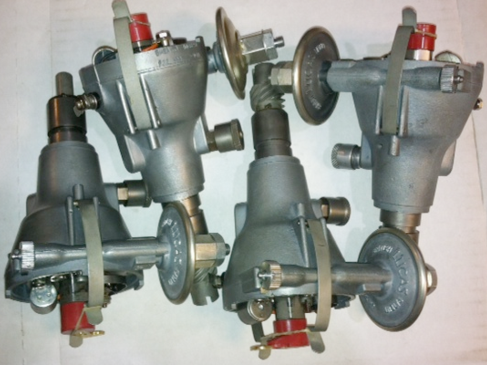

Lucas distributors - Re-built, restored and re-curved.

British Vacuum Unit, is not affiliated with ZF Friedrichshafen AG, the owner  the US trademark for Lucas®.


We totally rebuild, re-curve and recondition the DVX, DK, D2A, DM6, DMBZ6, DM2P4, 22D and 25D

4 and 6 cylinder Lucas distributors.All parts are replaced as needed, bushings, bearings, springs, weights etc.Shafts are plated and refit for proper cam spec.Distributor body’s are acid dipped and cleaned to OE finish.Steel parts are re-plated.DVX, DK, D2A, DM6 and DMBZ6 point plates reconditioned to new.DM2P4, 22D and 25D point plates are replaced with new improved plates, 1 inch center bearing and braided ground.Early DM2P4 distributor with pin link vacuum unit and hard to find, expensive 2 screw 420196 point set can be converted to a original equipment spring link vacuum unit, new point plate and inexpensive more common 423153 later point set.Early DVX, DK, D2A DM6 and DMBZ6 threaded posts and leads are replaced.All threaded hardware is replaced new.All supplied with new points, leads, red rotor, vacuum unit and a Superior Blue condenser.We often modify the curve for modern fuels and from emissions vacuum retard to performance vacuum advance.

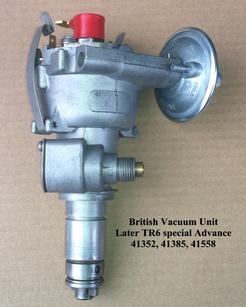

Re-curved on our Sun distributor machine.We are one of the only re-builders who can machine ported vacuum on Zenith carburetors for vacuum advance.We re-manufacture just about every OE advance, retard and duel vacuum unit including special advance units for cars like the 1971 to 76 TR6.We stock new 35D8 OE vacuum units for Aston Martin, Bentley MGBV8, Triumph Stag etcDistributor re-building range from $169.95 to $225.00Usually 2 to 10 day turn around.Feel free to call with any questions 603-731-1788.

British vacuum Unit

Canterbury, NH 03224

Jaguar distributors and vacuum units

Austin Healey 100-4  100-M  100-6  BJ7 BJ8  distributors and vacuum units

Triumph distributors and vacuum units

MGA MGB distributors and vacuum units

Midget distributors and vacuum units

Metropolitan distributors and vacuum units

Magnette distributors and vacuum units

Morgan distributors and vacuum units

Rover distributors and vacuum units

Austin Morris Mini distributors and vacuum units

Alvis distributors and vacuum units

Alfa distributors and vacuum units

Allard distributors and vacuum units

Aston Martin distributors and vacuum units

Bentley distributors and vacuum units

Lotus distributors and vacuum units

Sunbeam Alpine distributors and vacuum units

Humber Super Snipe distributors and vacuum units

​Humber Hawk distributors and vacuum units

Wolseley distributors and vacuum units

Daimler distributors and vacuum units

Rolls Royce distributors and vacuum units

Bentley distributors and vacuum units

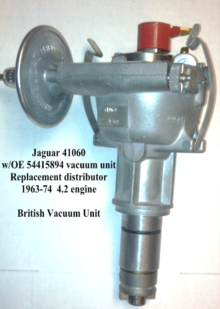

Later Jaguar retard

to vacuum advance

    Early 25D4  with OE

threaded vacuum unit.

MGTC TD TF DK and D2A in stock

1957 to 62 Austin Healey 100-6 DM6

We stock hundreds of Lucas distributor cores

for re-building.   if in need of a OE distributor number.

Cores range from $50 to $200

Jaguar XK120 / XK140

Rover / Aston Martin etc
